利用 GitHub Actions 进行 iOS 项目的 CI/CD

发表于 更新于 分类于
iOS CI/CD with GitHub Actions, 及踩坑记录。

搞 iOS 以来，一直在想找一个云主机进行 iOS 项目的 CI 探索，方向想偏了，没找到几家提供 macOS 系统的云主机，遂作罢。

最近在读 《iOS App Distribution & Best Practices》，里面提到现在有大致三类 CI 服务商：

  1. Full-service CI，即全方位服务的 CI 提供商，可以理解为通过交互页面就可以进行部署。虽然简单，但可能不太容易拓展。典型如：
    1. Bitrise: https://www.bitrise.io/
    2. Microsoft’s App Center: https://appcenter.ms/
  2. Managed CI，即在云上替你托管硬件相关的工作，你只需要提供构建脚本，在 iOS 项目中，常见的就是构建方式就是 fastlane 和 xcodebuild。比较流行的如：
    1. CircleCI: https://circleci.com/
    2. GitHub Actions: https://Github.com/features/actions
  3. Manual CI，即手动管理，感觉跟自己在云主机上处理一个概念。便宜，但得自己管理服务器。最著名的就是 Travis CI: https://travis-ci.org/ 了。

怀着激动的心，每个官方都去逛了一遍，确实都提供了 macOS 的构建环境，nice，der~。而且都有都有免费的配额（收费方式都是卖点卡）。

最后还是选择 GitHub Actions 作为远程 CI 的第一个实验品。截图如下

job

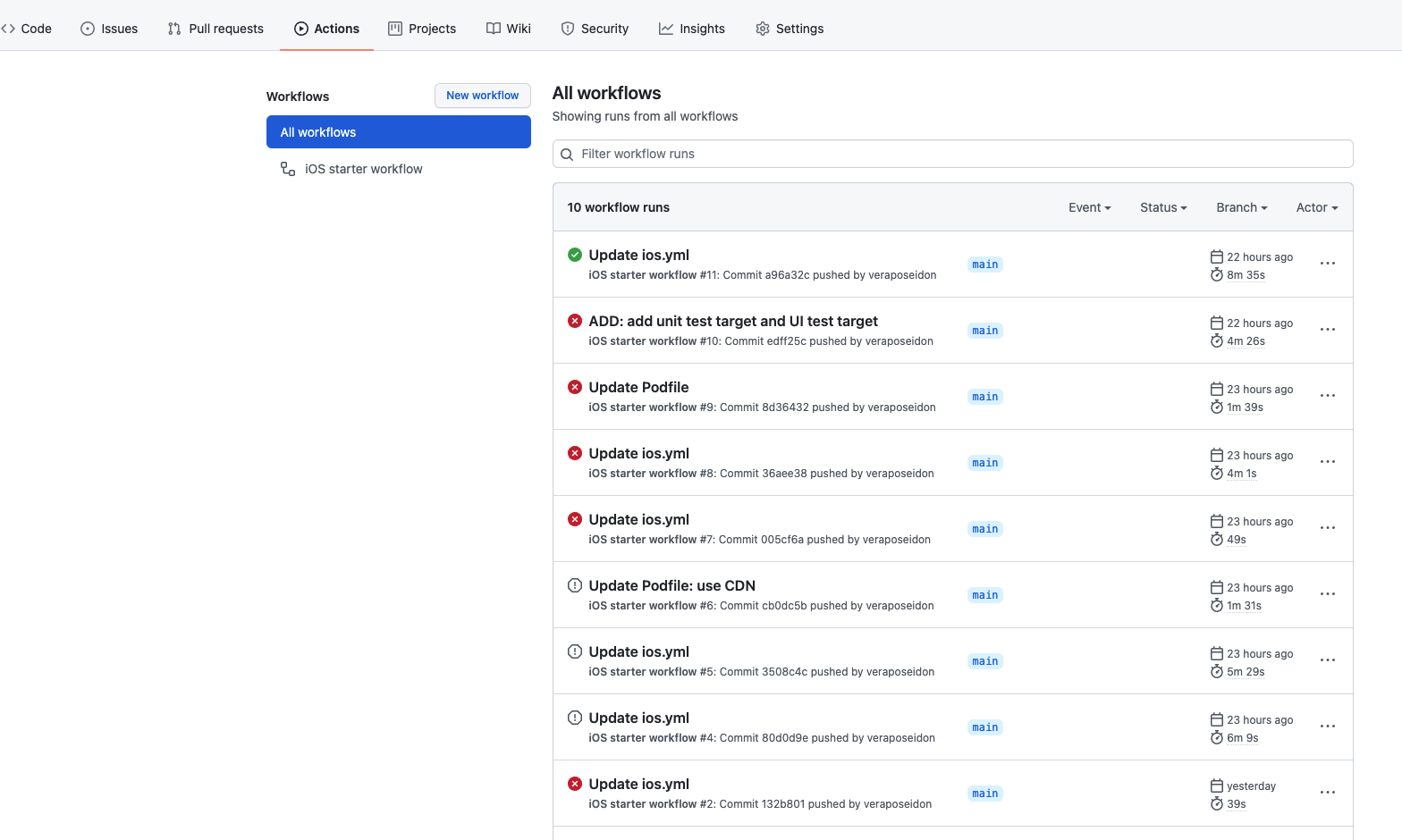

workflows

GitHub Actions 使用

中文的概念介绍和使用方式可以去看阮一峰的 GitHub Actions 入门教程 。

或者直接去看官方文档 GitHub Actions 。

简单来说，就是在仓库目录 .github/workflows/ 放置脚本，当有 push 或 PR 的时候，就会触发脚本运行。

免费额度查看方式，「右上角LOGO」-「Settings」-「Billings & plans」

触发条件

1
2
3
4
5
6
7
8
name: iOS starter workflow

# 触发条件，在 main 分支上有 push 和 PR 行为时触发脚本
on:
  push:
    branches: [ main ]
  pull_request:
    branches: [ main ]

Step 整理

构建环境

1
2
3
4
5
6
7
8
9
10
11
12
13
jobs:
  build:
    name: Build and Test default scheme using any available iPhone simulator
    # 环境
    runs-on: macos-latest

  	steps:
  		# Checkout 当前分支进行处理
  		- name: Checkout
        uses: actions/checkout@v2
  		- name: stepxxx
  			# operation

Pod install

iOS 项目免不了用 cocoaPods 安装依赖。

1
2
3
- name: Install Dependencies
  run: |
    pod install --repo-update

踩坑记录

在 Podfile 头部标记 source 'https://github.com/CocoaPods/Specs.git' 不是很明智。

cocoaPods 官方在 CocoaPods 1.7.2 — Master Repo CDN is Finalized! 表示，随着 pod 数目的增多，利用 github 作为数据库备份越来越慢了，已经更换成 CDN 的形式了。

1
2
3
# source 'https://github.com/CocoaPods/Specs.git'
# 替换成 CDN，或者干脆删除。因为默认 CDN 源了。
source 'https://cdn.cocoapods.org/'

默认 Scheme

1
2
3
4
5
6
- name: Set Default Scheme
  run: |
    scheme_list=$(xcodebuild -list -json | tr -d "\n")
    default=$(echo $scheme_list | ruby -e "require 'json'; puts JSON.parse(STDIN.gets)['project']['targets'][0]")
    echo $default | cat >default
    echo Using default scheme: $default

Build

用模拟器进行编译。优先跑 .xcworkspace，无则跑 .xcodeproj。

我测试的时候，在 GitHub Actions 上 xcrun 得到的模拟器名称不正确，所以直接固定了使用 iPhone 11 作为模拟器。

1
2
3
4
5
6
7
8
9
10
11
12
- name: Build
  env:
    scheme: ${{ 'default' }}
    platform: ${{ 'iOS Simulator' }}
  run: |
    # xcrun xctrace returns via stderr, not the expected stdout (see https://developer.apple.com/forums/thread/663959)
    # device=`xcrun xctrace list devices 2>&1 | grep -oE 'iPhone.*?[^\(]+' | head -1 | awk '{$1=$1;print}'`
    device='iPhone 11'
    if [ $scheme = default ]; then scheme=$(cat default); fi
    if [ "`ls -A | grep -i \\.xcworkspace\$`" ]; then filetype_parameter="workspace" && file_to_build="`ls -A | grep -i \\.xcworkspace\$`"; else filetype_parameter="project" && file_to_build="`ls -A | grep -i \\.xcodeproj\$`"; fi
    file_to_build=`echo $file_to_build | awk '{$1=$1;print}'`
    xcodebuild build-for-testing -scheme "$scheme" -"$filetype_parameter" "$file_to_build" -destination "platform=$platform,name=$device"

Test

1
2
3
4
5
6
7
8
9
10
11
12
- name: Test
  env:
    scheme: ${{ 'default' }}
    platform: ${{ 'iOS Simulator' }}
  run: |
    # xcrun xctrace returns via stderr, not the expected stdout (see https://developer.apple.com/forums/thread/663959)
    # device=`xcrun xctrace list devices 2>&1 | grep -oE 'iPhone.*?[^\(]+' | head -1 | awk '{$1=$1;print}'`
    device='iPhone 11'
    if [ $scheme = default ]; then scheme=$(cat default); fi
    if [ "`ls -A | grep -i \\.xcworkspace\$`" ]; then filetype_parameter="workspace" && file_to_build="`ls -A | grep -i \\.xcworkspace\$`"; else filetype_parameter="project" && file_to_build="`ls -A | grep -i \\.xcodeproj\$`"; fi
    file_to_build=`echo $file_to_build | awk '{$1=$1;print}'`
    xcodebuild test-without-building -scheme "$scheme" -"$filetype_parameter" "$file_to_build" -destination "platform=$platform,name=$device"

通知以及跨Job传递状态

  1. 使用 ravsamhq/notify-slack-action@v1 将 Job 状态通知到 Slack。

  2. 因为该 action 运行在 Linux 系统，所以需要另起一个 Job。

  3. 如何将上一个 Job 的状态通知到下一个 Job？一种思路是将 Job_A的状态通过文本保存到本地，再在Job_B中读取该状态。

    可参考：How get the status of previous jobs

保存状态

1
2
3
4
5
6
7
8
9
10
- name: Create file status_build_test.txt and write the job status into it
  if: always()
  run: |
    echo ${{ job.status }} > status_build_test.txt
- name: Upload file status_build_test.txt as an artifact
  if: always()
  uses: actions/upload-artifact@v1
  with:
    name: pass_status_build_test
    path: status_build_test.txt

读取状态

1
2
3
4
5
6
7
8
- name: Download artifact pass_status_build_test
  uses: actions/download-artifact@v1
  with:
    name: pass_status_build_test
- name: Set the statuses of Job build output parameters
  id: set_outputs
  run: |
    echo "::set-output name=status_build_test::$(<pass_status_build_test/status_build_test.txt)"

附录-完整版

附上我当前使用的完整脚本，持续完善中。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
name: iOS starter workflow

on:
  push:
    branches: [ main ]
  pull_request:
    branches: [ main ]

jobs:
  build:
    name: Build and Test default scheme using any available iPhone simulator
    runs-on: macos-latest

    steps:
      - name: Checkout
        uses: actions/checkout@v2
      - name: Install Dependencies
        run: |
          pod install --repo-update
      - name: Set Default Scheme
        run: |
          scheme_list=$(xcodebuild -list -json | tr -d "\n")
          default=$(echo $scheme_list | ruby -e "require 'json'; puts JSON.parse(STDIN.gets)['project']['targets'][0]")
          echo $default | cat >default
          echo Using default scheme: $default
      - name: Build
        env:
          scheme: ${{ 'default' }}
          platform: ${{ 'iOS Simulator' }}
        run: |
          # xcrun xctrace returns via stderr, not the expected stdout (see https://developer.apple.com/forums/thread/663959)
          # device=`xcrun xctrace list devices 2>&1 | grep -oE 'iPhone.*?[^\(]+' | head -1 | awk '{$1=$1;print}'`
          # 直接指定 iPhone 11
          device='iPhone 11'
          if [ $scheme = default ]; then scheme=$(cat default); fi
          if [ "`ls -A | grep -i \\.xcworkspace\$`" ]; then filetype_parameter="workspace" && file_to_build="`ls -A | grep -i \\.xcworkspace\$`"; else filetype_parameter="project" && file_to_build="`ls -A | grep -i \\.xcodeproj\$`"; fi
          file_to_build=`echo $file_to_build | awk '{$1=$1;print}'`
          xcodebuild build-for-testing -scheme "$scheme" -"$filetype_parameter" "$file_to_build" -destination "platform=$platform,name=$device"
      - name: Test
        env:
          scheme: ${{ 'default' }}
          platform: ${{ 'iOS Simulator' }}
        run: |
          # xcrun xctrace returns via stderr, not the expected stdout (see https://developer.apple.com/forums/thread/663959)
          # device=`xcrun xctrace list devices 2>&1 | grep -oE 'iPhone.*?[^\(]+' | head -1 | awk '{$1=$1;print}'`
          # 直接指定 iPhone 11
          device='iPhone 11'
          if [ $scheme = default ]; then scheme=$(cat default); fi
          if [ "`ls -A | grep -i \\.xcworkspace\$`" ]; then filetype_parameter="workspace" && file_to_build="`ls -A | grep -i \\.xcworkspace\$`"; else filetype_parameter="project" && file_to_build="`ls -A | grep -i \\.xcodeproj\$`"; fi
          file_to_build=`echo $file_to_build | awk '{$1=$1;print}'`
          xcodebuild test-without-building -scheme "$scheme" -"$filetype_parameter" "$file_to_build" -destination "platform=$platform,name=$device"
      - name: Create file status_build_test.txt and write the job status into it
        if: always()
        run: |
          echo ${{ job.status }} > status_build_test.txt
      - name: Upload file status_build_test.txt as an artifact
        if: always()
        uses: actions/upload-artifact@v1
        with:
          name: pass_status_build_test
          path: status_build_test.txt
  # 因为 notify-slack-action 跑在 Linux 系统所以另起一个 Job
  notify:
    needs: [ build ]
    if: always()
    name: Notify Slack
    runs-on: ubuntu-latest
    steps:
      - name: Download artifact pass_status_build_test
        uses: actions/download-artifact@v1
        with:
          name: pass_status_build_test
      - name: Set the statuses of Job build output parameters
        id: set_outputs
        run: |
          echo "::set-output name=status_build_test::$(<pass_status_build_test/status_build_test.txt)"
      - name: Notify Slack
        uses: ravsamhq/notify-slack-action@v1
        if: always()
        with:
          status: ${{ steps.set_outputs.outputs.status_build_test }}
        env:
          SLACK_WEBHOOK_URL: ${{ secrets.SLACK_WEBHOOK }}
